Professional Steel Flash Hole Uniformer

(3 customer reviews)

$24.50$31.25

NEVER use these tools in a case with a live primer, de-cap case!

Hand Loader! Are you looking for improved accuracy? Accuracy demands consistency and precision in every operation and component used in hand loading. The brass case is very important and sometimes important details are overlooked–such as the Primer Pocket and Flash Hole inside of the case.

Replacement cutters: .062 and .080

Flash hole size:

  • .080 for “standard” flash holes
  • .062 for Lapua 1.5mm flash holes
Version Cutter Size Caliber Range Shank Length Cone Diameter
0.080 .080″  .22 – .45 cal 3.5″ .48″
0.062 .062″  .22 – .45 cal 3.5″ .48″
.20 cal .080″ .20 cal only 2.75″ N/A
.20 cal PPC .062″ .20 cal only 2.75″ N/A
.19 cal .080″ .19 cal only 2.75″ N/A

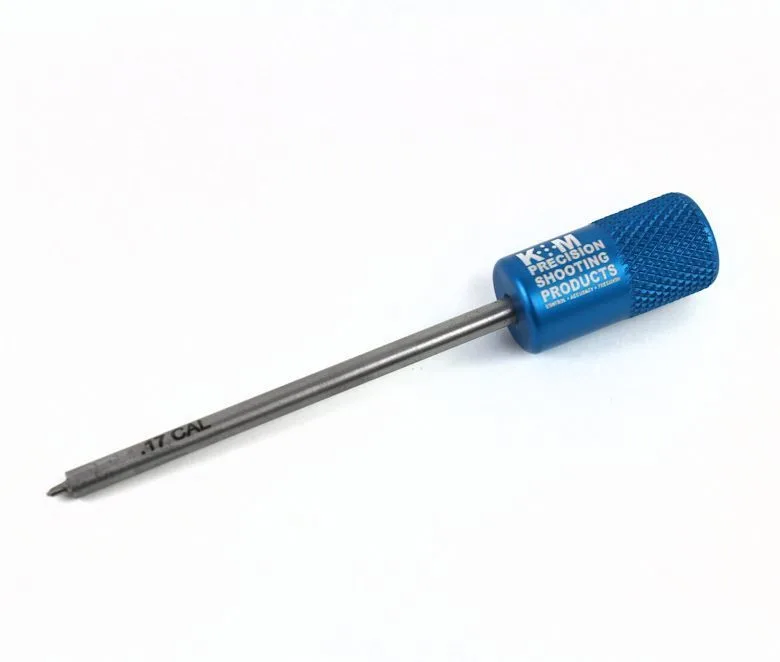

.17 cal .080″ .17 cal only 2.75″ N/A



Clear

Replacement Cutters: (Must purchase a flash hole tool, above, to purchase from this page. Click the blue box with arrow to purchase individually.)

0.062 Replacement Cutter, Flash Hole Uniformer

Replacement cutter for 0.062 Professional Flash Hole Uniformer ONLY.

0.080 Replacement Cutter, Flash Hole Uniformer

Replacement cutter for standard .080 Professional Flash Hole Uniformer ONLY.

SKU: N/A Category:

Description

Professional Flash Hole Uniformer

Hand Loader! Are you looking for improved accuracy? Accuracy demands consistency and precision in every operation and component used in hand loading. The brass case is very important and sometimes important details are overlooked–such as the Primer Pocket and Flash Hole inside of the case.

In cartridge manufacturing, the flash hole is “punched” into the brass. While this is the least expensive method, it has many shortcomings and inconsistencies. The flash holes, therefore, are of different sizes and shapes. The most detrimental to accuracy are the irregular “breakouts” and “burrs” on the inside. This will cause “shot-to-shot” differences in Primer “Flame Fronts”, causing inconsistent pressure/velocity and, thereby, loss of accuracy. Bench Rest Shooters have been uniforming flash holes since 1969.

With the Precision K & M UNIFORMER tools, you can realize the potential accuracy by simultaneously reaming, de-burring and chamfering the inside of the flash hole. The unique features of the K & M Tools provide uniformity with a pre-set depth stop, (Gage), surrounding the tool steel cutter, therefore, does not require the case to be trimmed to a precise or consistent length. Operation is controlled in reference to inside-bottom of case, not case mouth.

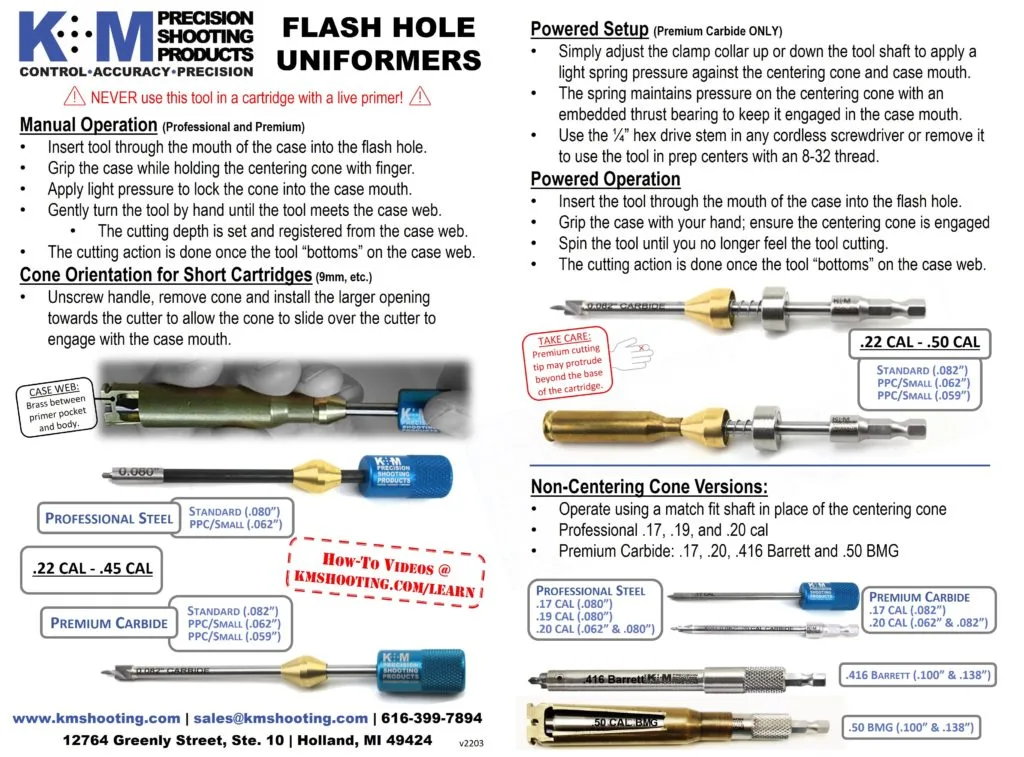

Tool Notes:

flash hole uniformer correction how to precision reloading how to flash hole uniformer correction precision reloading

NEVER use these tools in a case with a live Primer De-Cap Case – insert the K & M uniformer through the mouth of the case into the flash hole- grip case, with the base in the palm of hand, while holding the centering cone with thumb and forefinger apply light pressure to lock the cone into the case mouth. Gently turn the tool. You can feel the work being done. The cutting will cease when the Pre-set Depth Gage comes in contact with the inside bottom of case. Each one will feel different as you cut away the burrs and provide the 60° chamfer.

3 reviews for Professional Steel Flash Hole Uniformer

  1. Bruce Campbell

    Very easy to use and a clean hole. Surprising how much material comes from some cases.

    • Dave @ K&M

      Thanks Bruce! It is surprising how much of brass can come out. Drilled flash holes are better, but still roll a burr that should be removed.

  2. rclovelace (verified owner)

    Excellent product and great service from K & M

    • Dave @ K&M

      Thanks rclovelace! Glad we hit our target: great products and service!

  3. Kim Giles

    Absolutely love this tool. When I started cleaning up the flash holes I was amazed at how much material came out of some of the cases. I was so impressed I went ahead and ordered a case neck turner. Love the quality of y’all product.

    • Dave @ K&M

      Hey Kim, thanks for the kind words – we appreciate the feedback!
